เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น X10

  • Compact and strong

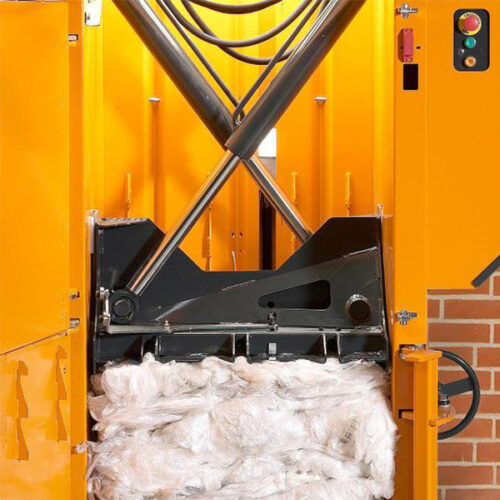

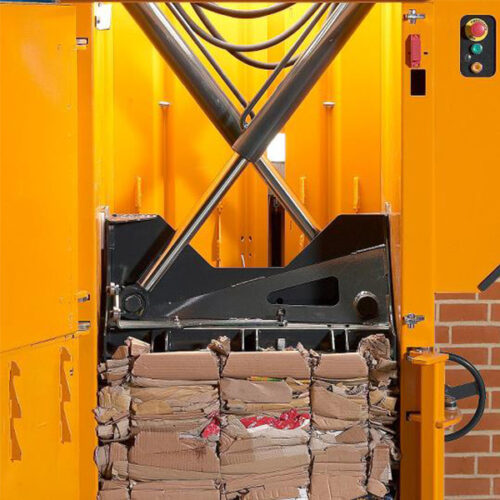

  • stop Internal cross cylinders for a very low overall height (1900 mm)
  • stop Short cycle time for fast clean up
  • stop Press force of 10 tons – a hardworking baler with high capacity
  • stop Small base area (<1.5 m2)
  • stop Steady compaction – keeps bales under pressure while tying
  • stop Available with both single and three phase connection

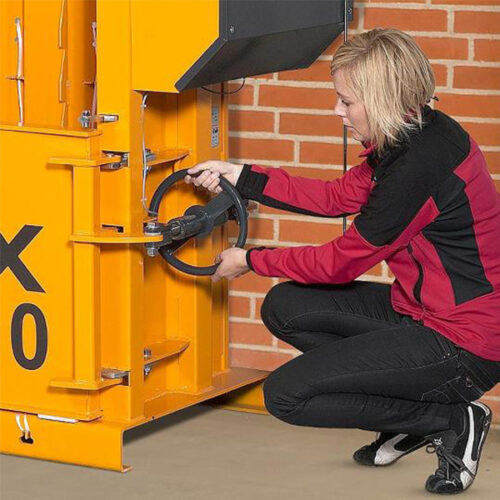

  • stop The lower door is safely opened with a threaded spindle



Bale weight cardboard (kg): 70-90
Bale weight plastic foil (kg): 80-110
Bale size WxDxH (mm): 800 x 600 x 600
Press force (t): 10
Power supply: 3x400V 50Hz 16A
Motor (kW): 4.0
Noise Level (dB): 59-60
Cycle time avg. (sec): 18
Dimensions WxDxH (mm): 1315 x 1040 x 1900
Machine weight (kg): 665
Feed opening WxH (mm): 800 x 610
