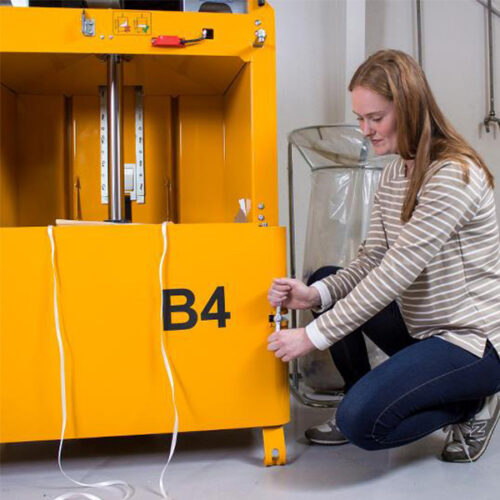

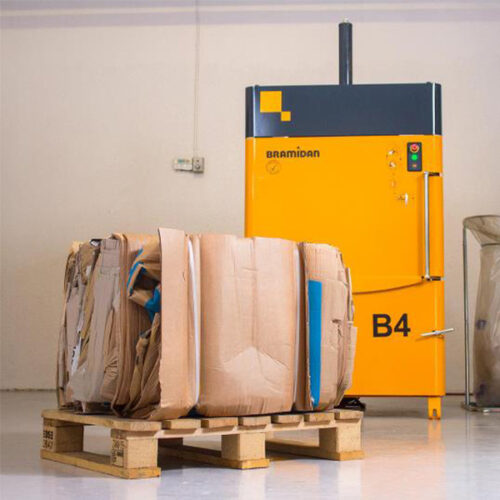

เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น B4

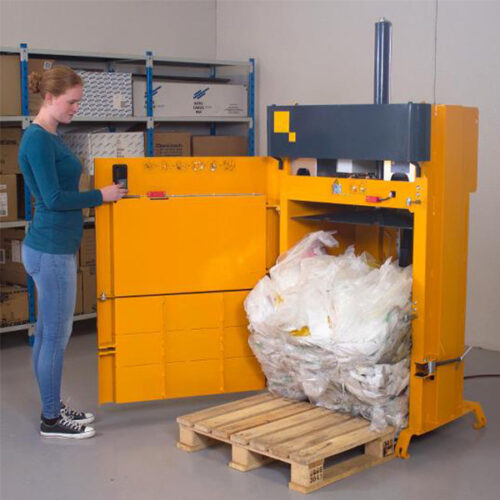

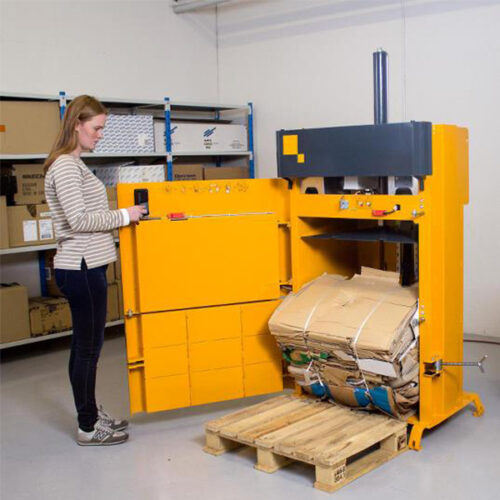

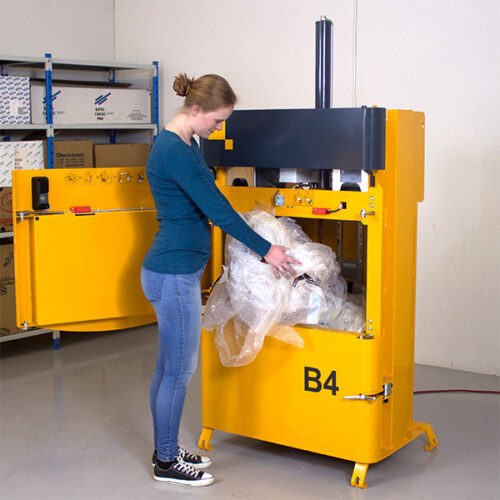

The Bramidan B4 baler is a machine which has been constructed to service users with smaller amounts of waste, but who still need a machine to handle bulky materials.

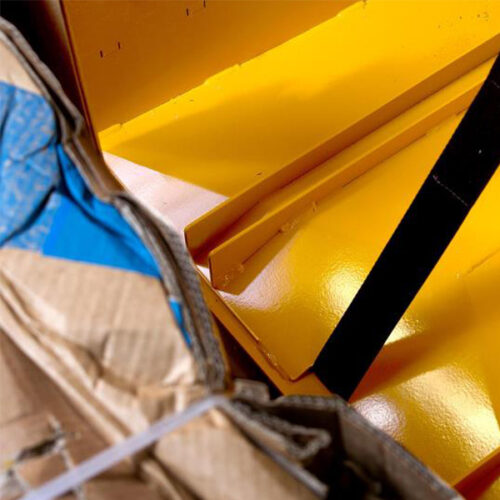

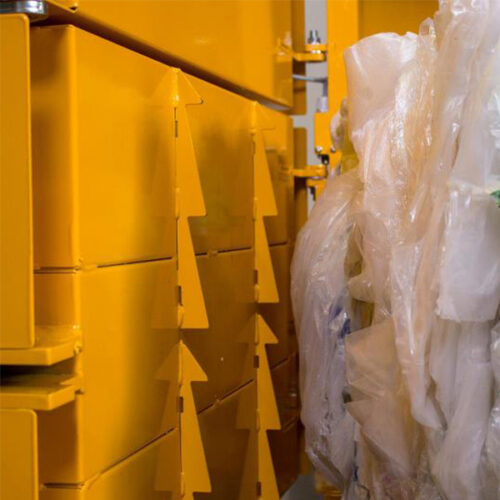

The chamber is equipped with rows of efficient barbs, which keep the material back and ensure optimum filling.
Bale weight cardboard (kg): 40-60
Bale weight plastic foil (kg): 50-70
Bale size WxDxH (mm): 770 x 500 x 600
Press force (t): 4
Power supply: 1x230V 50Hz 10A
Motor (kW): 1.5
Noise Level (dB): 57-60
Cycle time avg. (sec): 28
Dimensions WxDxH (mm): 975 x 715 x 1985
Machine weight (kg): 300
Feed opening WxH (mm): 770 x 460
- รายละเอียด
รายละเอียด
