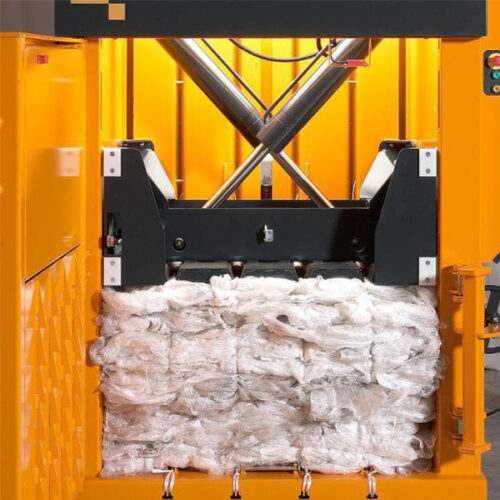

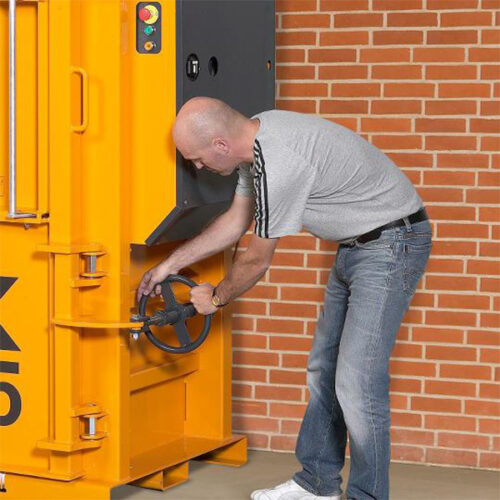

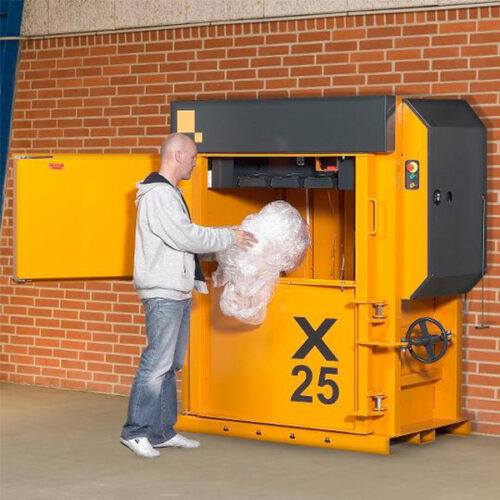

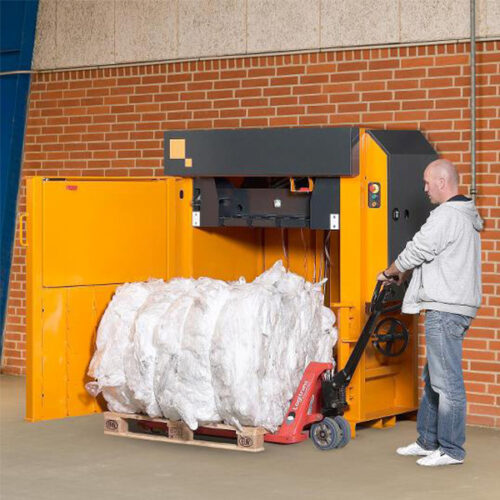

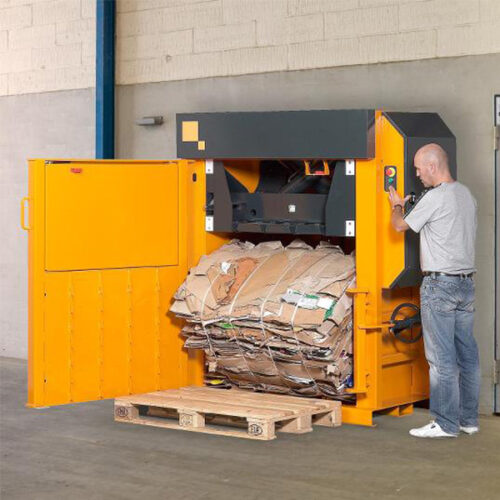

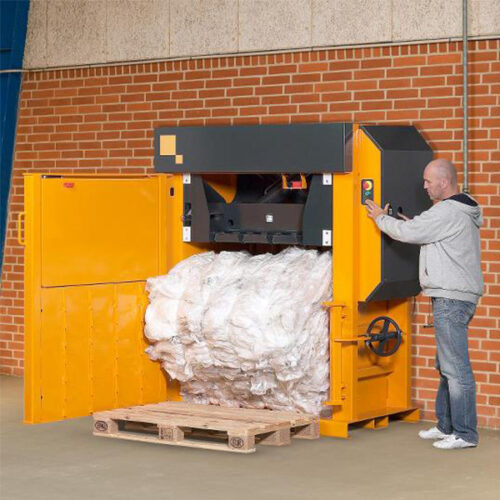

เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น X25
Bale weight cardboard (kg): 200-300
Bale weight plastic foil (kg): 250-350
Bale size WxDxH (mm): 1200 x 800 x 800
Press force (t): 25
Power supply: 3x400V 50Hz 16A
Motor (kW): 4.0
Noise Level (dB): 59-60
Cycle time avg. (sec): 23
Dimensions WxDxH (mm): 1745 x 1255 x 1995
Machine weight (kg): 1410
Feed opening WxH (mm): 1090 x 530
สินค้าที่เกี่ยวข้อง
-
เครื่องเจาะและบดขวดพลาสติก HSM PET-Crusher รุ่น 1049SA
This HSM solution reduces the space requirement for returned containers to approx. 25 to 30 percent of the original volume, thus also reducing the time required for disposal. The special roller system perforates and crushes the containers. The sidewalls mesh into each other, making the reduction in volume permanent. Crushing has an additional advantage: deposit plastic bottles and cans are reliably invalidated.
- Container volume / collecting: 290 l
- Driving power: 3 kW
- Frequency: 50 Hz
- Working width: 490 mm
- Loading height: 1,206 mm
- Dimensions in mm: W 793 x H 2,037 x D 1,751
- Weight: 288 kg
- Industry type: Food & beverage industry, Retail
- Press material: PET, soft packaging
-
เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น X50
Bale weight cardboard (kg): 350-450
Bale weight plastic foil (kg): 400-500
Bale size WxDxH (mm): 1200 x 800 x 1100
Press force (t): 50
Power supply: 3x400V 50Hz 32A
Motor (kW): 5.5
Noise Level (dB): 71
Cycle time avg. (sec): 28
Dimensions WxDxH (mm): 1965 x 1385 x 2580
Machine weight (kg): 2590
Feed opening WxH (mm): 1090 x 610 -
เครื่องอัดเศษวัสดุแนวนอนแบบต่อเนื่องอัตโนมัติ HSM รุ่น VK 2310
- Pressing power: 240 kN
- Volume throughput at 20 kg/m³: 1.47 t
- Volume throughput at 50 kg/m³: 3.67 t
- Bale weight, depending on material (up to): 140-250 kg
- Driving power: 9.2 kW
- Voltage: 400 V
- Frequency: 50 Hz
- Dimensions in mm: W 2,600 x H 2,050 x L 6,060
- Weight: 4,000 kg
-
เครื่องอัดเศษวัสดุพร้อมแยกของเหลว HSM รุ่น FluidEx 600
The HSM PET FluidEx 600 empties quickly and reliably those full PET bottles, carton based packaging containers and cans which have been filled or labelled incorrectly or where the sell-by date has been exceeded. The containers thrown in via the loading funnel are pulled in by the 4-roller mechanism and almost completely emptied. Small pieces of plastic and labels are removed from the liquid using a filter system and the liquid is then discharged using a dedicated system. The hinged loading funnel means that the machine can be easily cleaned. A high performance, low space requirement and the possibility to integrate the machine into existing recycling processes are the decisive advantages of the HSM PET FluidEx 600.
- Perforation of full PET bottles, carton based packaging containers and cans
- Containers emptied by up to 98 %
- Optimum removal of any remaining liquids using the 4 shaft technology
- Low space requirement
- Both manual and automatic filling possible
- Cutting unit made of specially hardened and ground steel
- Durable and robust – for a long life-cycle
- Intake shafts ensure that the PET bottles are fed reliably into the cutting unit
- Specific discharge system for liquids via hose or pump
- Easy to clean due to inspection flap
- Ideal as compliment to the HSM Baling presses
-
เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น B3
Bale weight cardboard (kg): 30-50
Bale weight plastic foil (kg): 40-60
Bale size WxDxH (mm): 770 x 500 x 600
Press force (t): 3
Power supply: 1x230V 50Hz 10A
Motor (kW): 1,1
Noise Level (dB): 65-68
Cycle time avg. (sec): 24
Dimensions WxDxH (mm): 975 x 715 x 1885
Machine weight (kg): 290
Feed opening WxH (mm): 770 x 460 -
เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น X10
Bale weight cardboard (kg): 70-90
Bale weight plastic foil (kg): 80-110
Bale size WxDxH (mm): 800 x 600 x 600
Press force (t): 10
Power supply: 3x400V 50Hz 16A
Motor (kW): 4.0
Noise Level (dB): 59-60
Cycle time avg. (sec): 18
Dimensions WxDxH (mm): 1315 x 1040 x 1900
Machine weight (kg): 665
Feed opening WxH (mm): 800 x 610 -
เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น B4
Bale weight cardboard (kg): 40-60
Bale weight plastic foil (kg): 50-70
Bale size WxDxH (mm): 770 x 500 x 600
Press force (t): 4
Power supply: 1x230V 50Hz 10A
Motor (kW): 1.5
Noise Level (dB): 57-60
Cycle time avg. (sec): 28
Dimensions WxDxH (mm): 975 x 715 x 1985
Machine weight (kg): 300
Feed opening WxH (mm): 770 x 460 -
เครื่องอัดเศษวัสดุแนวตั้งแบบประตูบานพับ พร้อมที่ล็อคประตูแบบมือหมุน HSM รุ่น V-Press 860 eco
With a pressing power of 548 kN and employing low-noise and energy-saving technology, the HSM V-Press 860 is the most economical and ecological solution for your waste disposal.
Article Number: 000000000006148174
Pressing power: 548 kN
Loading aperture width: 1195 mm
Loading aperture height: 650 mm
Bale length: 1200 mm
Bale width: 780 mm
Bale height (up to): 1200 mm
Bale weight, depending on material (up to): 480 kg
Cycle time when idling vacío: 25 s
Driving power: 4 kW
Voltage: 400 V
Frequency: 50 Hz
Width x Height x Depth: 1797 x 2985 x 1070 mm
Weight: 1886 kg
Industry type: Industry and Manufacturing, Print and Packaging, Recycling & Disposal, Logistics and Distribution, Retail
Press material: Plastic film, Punch waste/residue, Clothing, Polystyrene, Big Bags, Mixed paper, Cardboard -
เครื่องฉลุกล่องกระดาษที่เหลือใช้ HSM รุ่น profipack P425
This high-performance packaging machine is used to process a number of layers of cardboard into a padding mat or padded filling material. The professional device is mobile on steering rollers and can be used with total flexibility.
- Intake width: 425 mm
- Infeed/Loading height: 20 mm
- Cutting speed: 235 mm/s
- Noise level (idle operation): 59 dB(A)
- Driving power: 1.4 kW
- Voltage: 230 V
- Frequency: 50 Hz
- Width x Height x Depth: 770 x 1040 x 570 mm
- Weight: 170 kg
- Colour: ight grey, iron grey
-
เครื่องอัดเศษวัสดุแนวตั้งแบบประตูสไลด์ พร้อมที่ล็อคประตูแบบมือหมุน HSM รุ่น V-Press 820 plus
Thanks to its powerful motor, its ergonomic design and its sophisticated and innovative technology, the
HSM V-Press 820 combines all of the advantages of a baling press into one machine.Article Number: 000000000006143284
Pressing power: 178 kN
Loading aperture width: 1195 mm
Loading aperture height: 558 mm
Bale length: 1200 mm
Bale width: 780 mm
Bale height (up to): 1000 mm
Bale weight, depending on material (up to): ca. 250 kg
Cycle time when idling vacío: 23 s
Driving power: 4 kW
Voltage: 400 V
Frequency: 50 Hz
Width x Height x Depth: 1700 x 2470 x 1075 mm
Weight: 1300 kg
Industry type: Industry and Manufacturing
Press material: Plastic film, Punch waste/residue, Mixed paper, Cardboard
