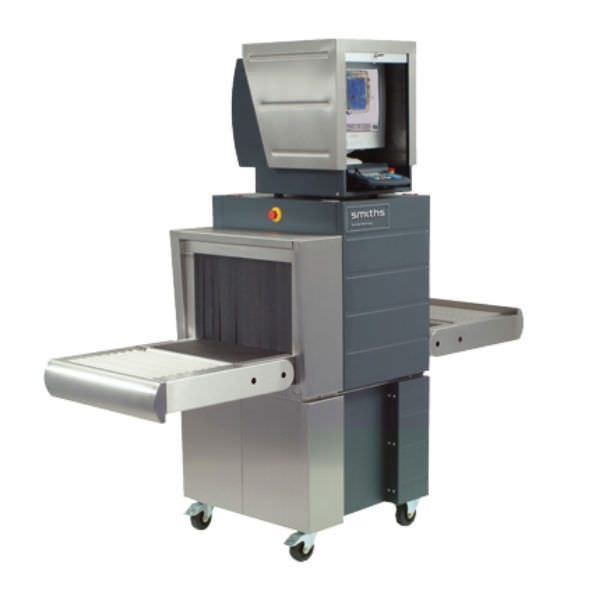

เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์ Smiths Detection รุ่น HS-5030si
HEIMANN X-RAY INSPECTION SYSTEM

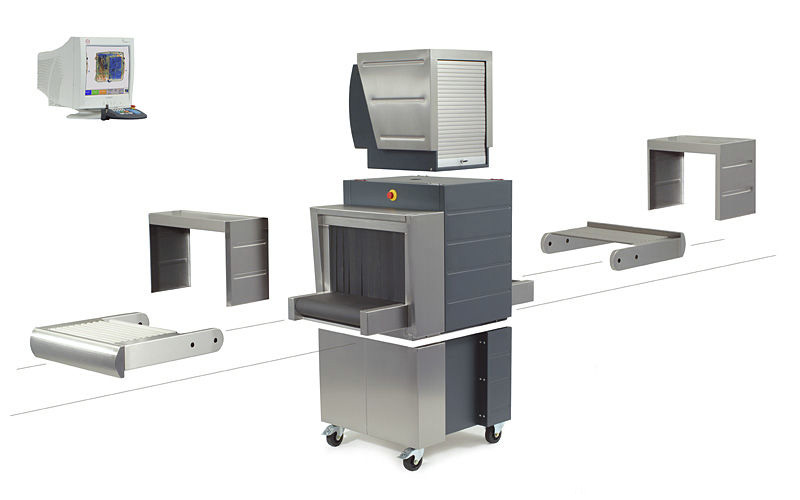

The HI-SCAN 5030si X-ray inspection system is part of a compact range that has achieved more than 3,000 installations worldwide. Planned in modular design as a tabletop system, HI-SCAN 5030si offers considerable flexibility, making it suitable for several different applications. Due to its small foot print and robust casters it is easily wheeled even through narrow spaces and over rugged terrain to any place where personal belongings and other items need to be screened
Feature Highlights:
- Compact and flexible solution for stationary and mobile applications
- Tunnel opening of 50 x 30 cm
- Easy to use
- Typical penetration 16 mm of steel, wire resolution up to AWG 39
- รายละเอียด
รายละเอียด
สินค้าที่เกี่ยวข้อง
-
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์บรรจุภัณฑ์ขนาดใหญ่ Smiths Detection รุ่น HI-SCAN 100100T-2is
Equipped with two generators arranged at a 90° angle to each other, the HI-SCAN 100100T-2is provides Dual-view screening of objects up to 100 x 100cm (39 x 39in). The Dual-view screening mode provides reliable inspection of tightly packed objects in a single process, while shortening inspection times and increasing the effectiveness of the procedure.
With the low installation height of the HI-SCAN 100100T-2is conveyor belt, it is simple to connect supplementary feed and/or discharge conveyor systems for heavy freight.
- Ideal for inspecting over sized baggage and freight
- Dual-view shortens inspection times
- Low conveyor belt height allows for easy handling
- HI-MAT Plus technology for better material distinction
- Typical penetration: 35mm of steel in view 2 and 37mm in view 1
- Max. object size: 1,000 (W) x 1,000 (H) [mm]
- Dimensions: 3,758 (L) x 1,595 (W) x 1,900 (H) [mm]
- Weight: 1,050kg
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์ Astrophysics รุ่น XIS-6545
The XIS-6545 is the ultimate X-Ray Inspection System with a tunnel opening of 65.1 x 45.4 cm (25.6” x 18”). Designed for small to medium sized objects, the XIS-6545 is the first product ever manufactured by Astrophysics and is characterized by its reliability, optimal dimensions and effective threat detection.
GENERAL SPECIFICATIONS
• Tunnel Opening : 65.0 cm x 45.0 cm (W x H) 25.6” x 17.7”
• Dimensions 2 : 151.6 cm x 88.8 cm x 130.5 cm (L x W x H) 59.7” x 35.0” x 51.4”
• Shipping Dimensions 2 : 231.1 cm x 102.0 cm x 159.0 cm (L x W x H) 91.3” x 40.1” x 63.0”
• Net Weight 2 : 431 kg (950 lbs)
• Shipping Weight 2 : 600 kg (1323 lbs)
• Conveyor Speed : 23 cm/s (45 ft/min) Forward or Reverse
• Conveyor Height : 71.9 cm (28.3”) from Floor
• Conveyor Capacity : 165 kg (364 lbs) Evenly Distributed Loadอ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์ Astrophysics XIS-100XD
The XIS-100XD is a redesigned 100X with a tunnel size of 100 x 100 cm (39.4” x 39.4”). With a repositioned 180kV generator, the XIS-100XD has a low conveyor height of just 30 cm (12”), enabling heavy objects to be easily loaded on and off the conveyor.
- 6 Colour Imaging
- 9 Quadrant Zoom
- Atomic Z-Number Measurement
- Autom Image Archiving (50,000 images)
- Baggage Counter
- Colour and Black & White Imaging
- Continuous Scanning
- Continuous Zoom 2x to 32x
- Image Review (100 images)
- Edge-Enhancmement Imaging
- Geometric Image Distortion Correction
- High Penetration Function
- Weight: 884 kg
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจจับโลหะต้องสงสัยแบบเดินผ่าน CEIA รุ่น HI-PE Plus
เครื่องประตูตรวจจับโลหะต้องสงสัยยี่ห้อ CEIA รุ่น HI-PE Plus ได้รับการยอมรับจากศาล โรงงานอุตสาหกรรม โรงพยาบาล สนามกีฬา ห้างสรรพสินค้างานแสดงสินค้า และสถานที่ VIP ที่ต้องการความปลอดภัยสูง รวมถึงท่าอากาศยานในประเทศสหรัฐอเมริกา ยุโรป ประเทศในเอเชีย ประเทศในสาธารณรัฐอาหรับ ประเทศไทย ฯลฯ
- สามารถตรวจจับวัตถุทุกขนาด ผ่านการรับรองมาตรฐาน จากกระทรวงยุติธรรม ประเทศสหรัฐอเมริกา NIJ 0601.02 ความแม่นยำสูง กล้าท้าให้ลองตั้งเทียบกับคู่แข่งยี่ห้ออื่น ๆ
- เป็นยี่ห้อเดียวที่ได้รับการรับรองจาก สถาบันจุฬาลงกรณ์มหาวิทยาลัยว่าไม่เป็นอันตรายต่อผู้ใช้เครื่องช่วยกระตุ้นหัวใจ สตรีมีครรภ์ เด็ก และเครื่องมือทางการแพทย์ ไม่มีผลต่อเครื่องมือสื่อสาร หรืออุปกรณ์ไฟฟ้าใดๆ
- ตรวจจับวัตถุขนาดใหญ่ และกลาง
- สามารถตรวจจับ 60 โซน
- ความแม่นยำสูง กล้าท้าให้ลองตั้งเทียบกับคู่แข่งยี่ห้ออื่น ๆ
- แผงวงจรภายในใช้เทคโนโลยีมาตรฐานเดียวกับอุปกรณ์ทางการทหาร แข็งแรง และแน่นหนา
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์ตู้คอนเทนเนอร์ Astrophysics HXP
The Astrophysics HXP is a portal X-ray scanner to inspect trucks, containers and vehicles for contraband, weapons, explosives, fraudulent trade items, and other security threats.
With an easy drive-through process, automated operation and high throughput, the need for manual inspection is reduced and high-volume cargo inspection locations will not be set back.
- tunnel high: 5 meters
- scans 150 trucks in one hour
- compact design with small footprint
- redundant sensors for save driver passage
- high resolution imaging and impressive penetration equivalent to over 300 mm of steel
- portals are optimized for containers
- camera readers (optional)
- extra workstations can be added (optional)
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจจับโลหะ แบบมือถือ CEIA รุ่น PD140N
เครื่องตรวจจับโลหะต้องสงสัยแบบมือถือ PD140N อุปกรณ์ตรวจจับโลหะแบบพกพา รวบรวมเทคโนยีล่าสุดไว้ในเครื่องเดียว สามารถตรวจจับโลหะได้ดีเยี่ยม พกพาง่าย แม่นยำ เทียบเท่าเครื่องใหญ่
- ได้รับการยอมรับจาก สถานที่ราชการทั่วโลก โรงงานอุตสาหกรรม และท่าอากาศยาน
- ผ่านการรับรองมาตรฐาน NIJ 0601.02 ซึ่ง CEIA ทำได้เหนือกว่าคู่แข่ง คือ สามารถรองรับการตรวจจับวัตถุได้ทุกขนาด
- สามารถตรวจค้นโลหะในพื้นที่เป็นวงกว้าง แสดงผลรวดเร็ว และแม่นยำ
- รองรับการใช้งานสูงสุด 100 ชั่วโมง และ On Stand by 200 ชั่วโมง
- ขนาดกะทัดรัด พกพาสะดวก
- ใช้งานได้ทั้งภายใน และภายนอกอาคาร
- สามารถตั้งโปรแกรมการใช้งานได้หลายรูปแบบ และตั้งสิทธิ์ในการปรับแต่งฟังก์ชัน ของเครื่อง
- ไม่ถูกรบกวนด้วยโครงสร้างเหล็กที่อยู่ใต้พื้น
- ผลิตจากประเทศอิตาลี
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์ Astrophysics รุ่น XIS-5335
The XIS-5335 is a compact X-Ray Inspection System with tunnel dimensions 53.3 x 35.4 cm (21” x 14”). The XIS-5335 is the smallest system in the XIS series and is designed for screening objects ranging from mailroom parcels to purses and backpacks.
The XIS-5335 x-ray inspection system has been installed at various checkpoint locations including government buildings, private hotels, and corporate mailrooms. Mounted on a compact frame with heavy duty roller casters, the XIS-5335 can be easily relocated to any site in need of an immediate screening solution.
It offers the best in compact checkpoint security: quality, low cost ownership, flexibility and performance.
GENERAL SPECIFICATIONS
Tunnel Size (W x H):
53.3 cm x 35.4 cm/ 21” x 14”Dimensions (L x W x H):
132 cm x 76.2 cm x 123 cm/ 52” x 30” x 48.4”X-ray Generator:
90kV, Operating at 84kVอ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์ Smiths Detection รุ่น HS-7555i
The HI-SCAN 7555i is a compact x-ray inspection system with a tunnel opening of 755 mm (30“) wide by 555 mm ( 22“) high. This tunnel size is ideally suited to screening checked luggage and packages as well as briefcases, handbags and other small items.
Online image analysis methods to support the operator’s work, and a new man-machine interface configured according to ergonomic requirements, are pointing the way to the future for this kind of system. Innovative technique and a high degree of reliability, make this system an excellent tool for covering sensitive fields of inspection.
Feature Highlights
- High-End processor technology
- High-Speed digital signal transmission
- HI-MAT Plus advanced material classification
- High Image resolution
- 24 Bit real time image processing
- New ergonomic user interface
- Free programmable priority keys
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์ตู้คอนเทนเนอร์ Smiths Detection HCVP Z60
HCVP is a drive-through portal for the inspection of trucks, containers and other vehicles, for explosives, drugs and weapons.
It can also provide manifest verification, reducing the need for manual inspections.
Its accelerators allow for steel penetration from 230mm (9in) to 300mm (11.8in) while providing a high throughput.
The HCVP is also available with options that include viZual technology for the identification of organic/inorganic materials, automatic radioactive material detection, optical character recognition and options for bumper-to-bumper scans for countries where scanning people is allowed.
- Throughput of 100 to 120 vehicles an hour
- Small footprint
- Quick and reliable search results
- Minimum crew requirements: 1 traffic receptionist / 1 system operator / 2 image operators
- Scanning speed: 7km/5mph
- Operating temperature: -20 to +40°C (-4 to +104°F)
- Weight: 12,000kg
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องตรวจสอบวัตถุต้องสงสัยแบบเอกซเรย์รถยนต์บุคคล Astrophysics HXC-320
The Astrophysics HXC-320 Vehicle Scanner is specifically designed to scan cars and motor vehicles with a height of 2.7 meters and a width of 2.6 meters. The HXC-320 scans vehicles to identify hidden contraband, such as smuggled goods, explosives, narcotics and weapons. The HXC-320 has a 320kV X-ray generator that allows the car scanner to operate as a drive-through portal, without the need to unload drivers and passengers. Its’ easy process, automated operation and high throughput, reduce the need for manual inspection and locations experiencing high volume traffic will experience lower backlog and delays.
- Quick and efficient vehicle inspections
- Identify threats such as explosives, weapons, smuggled goods, and other contrabands
- Customizable for individual requirements
- Maximum image clarity using a 320kV generator
- Symmetrical downshooter beam direction provides excellent image quality without the distortion common to sideshooter systems
- Compact design and small footprint
- High throughput with up to 180 vehicles per hour, assuming there is a single operator and 20 second image analysis
- Steel penetration typically 60-65mm
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
