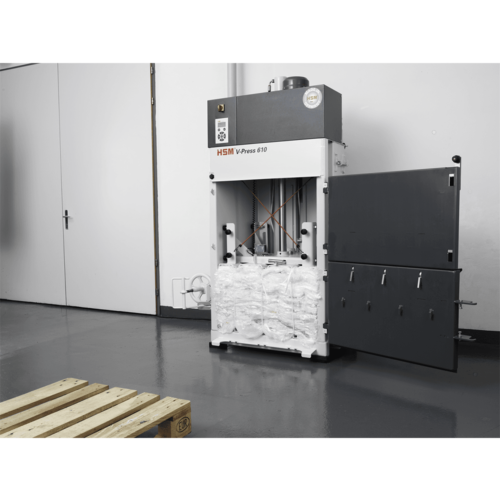

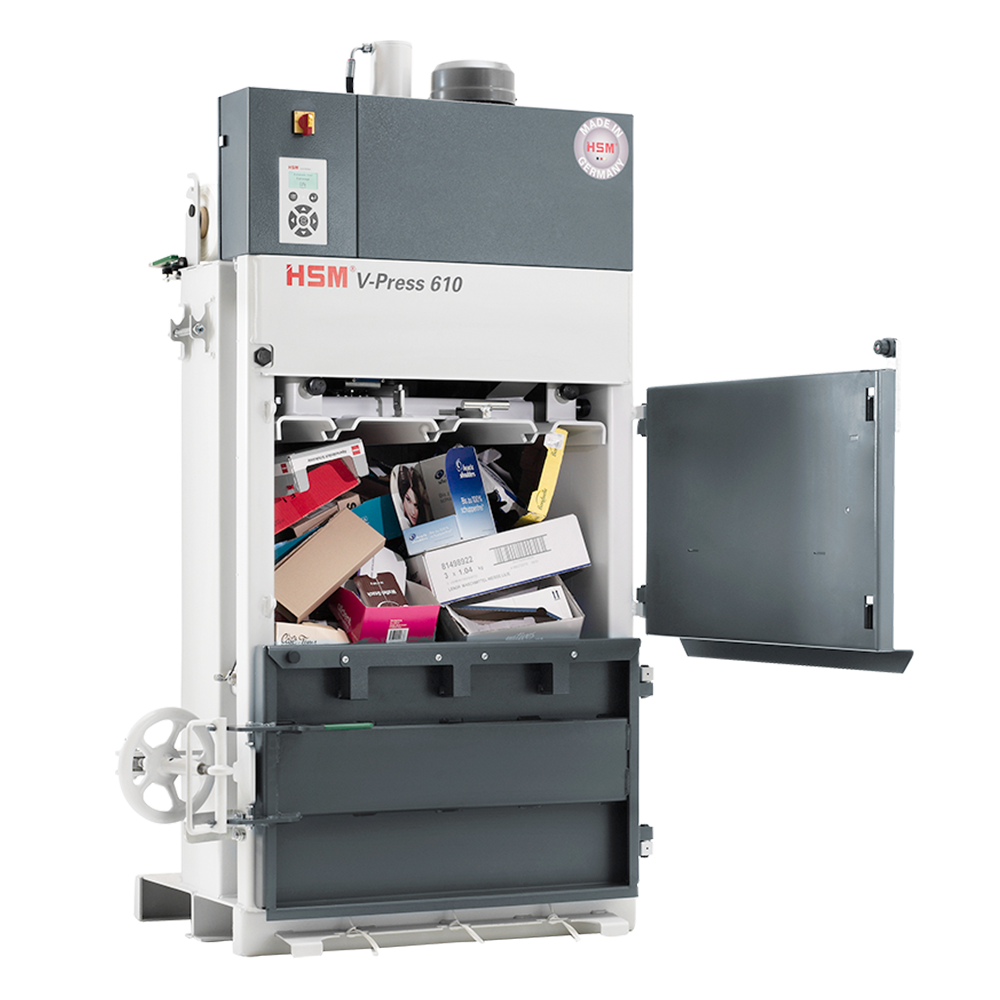

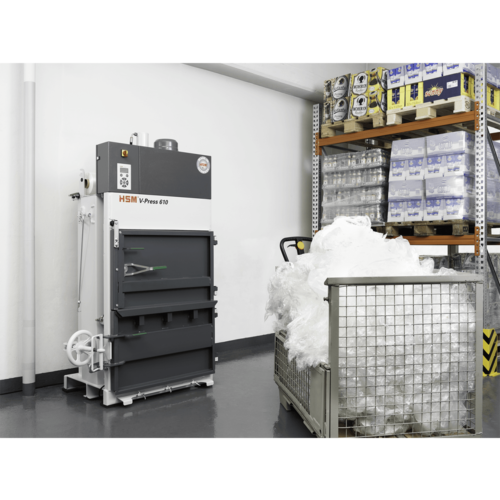

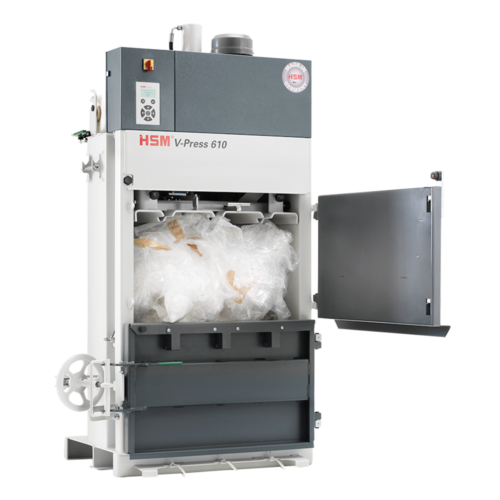

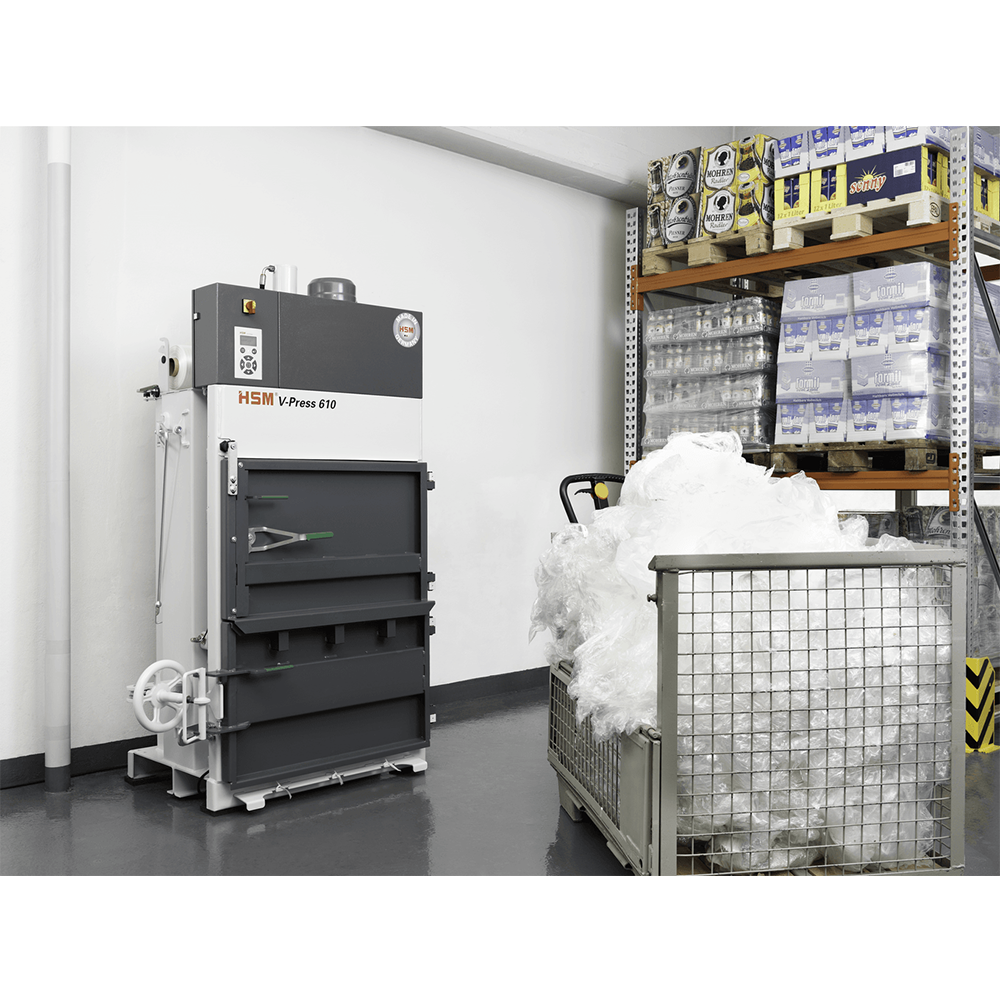

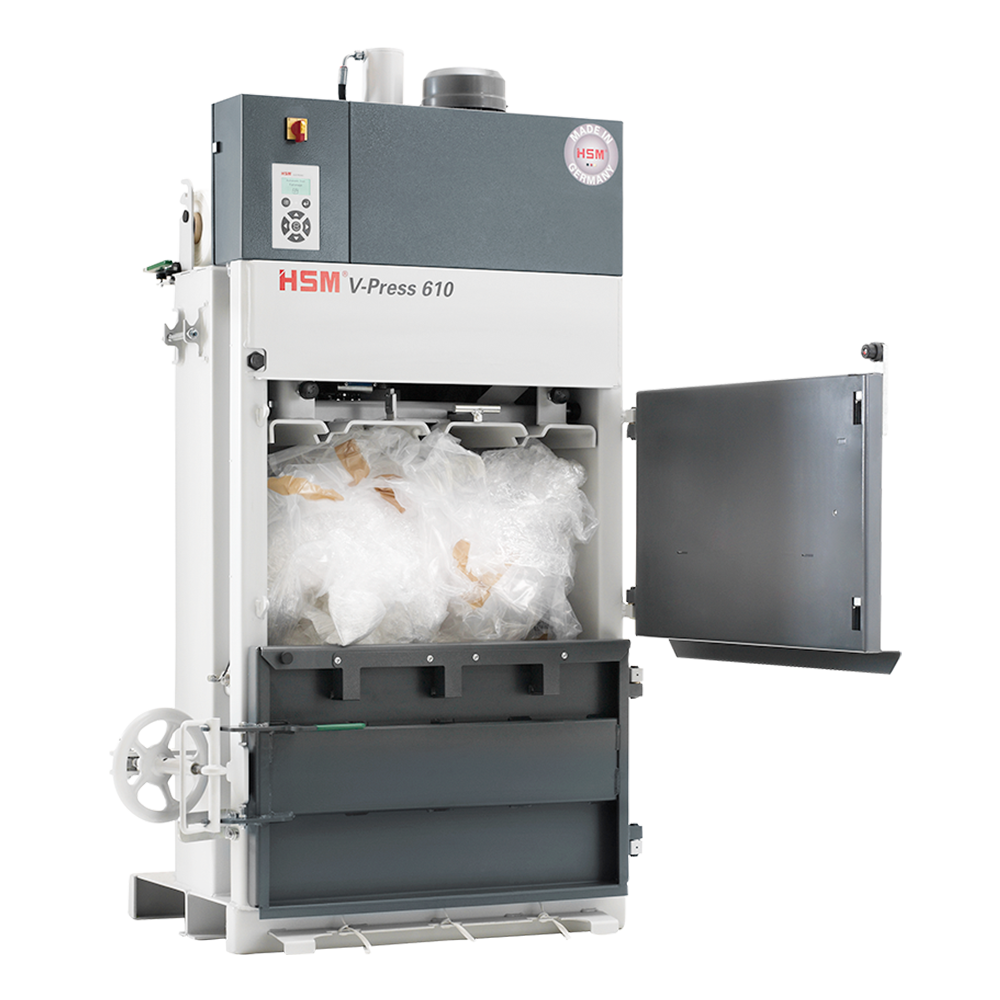

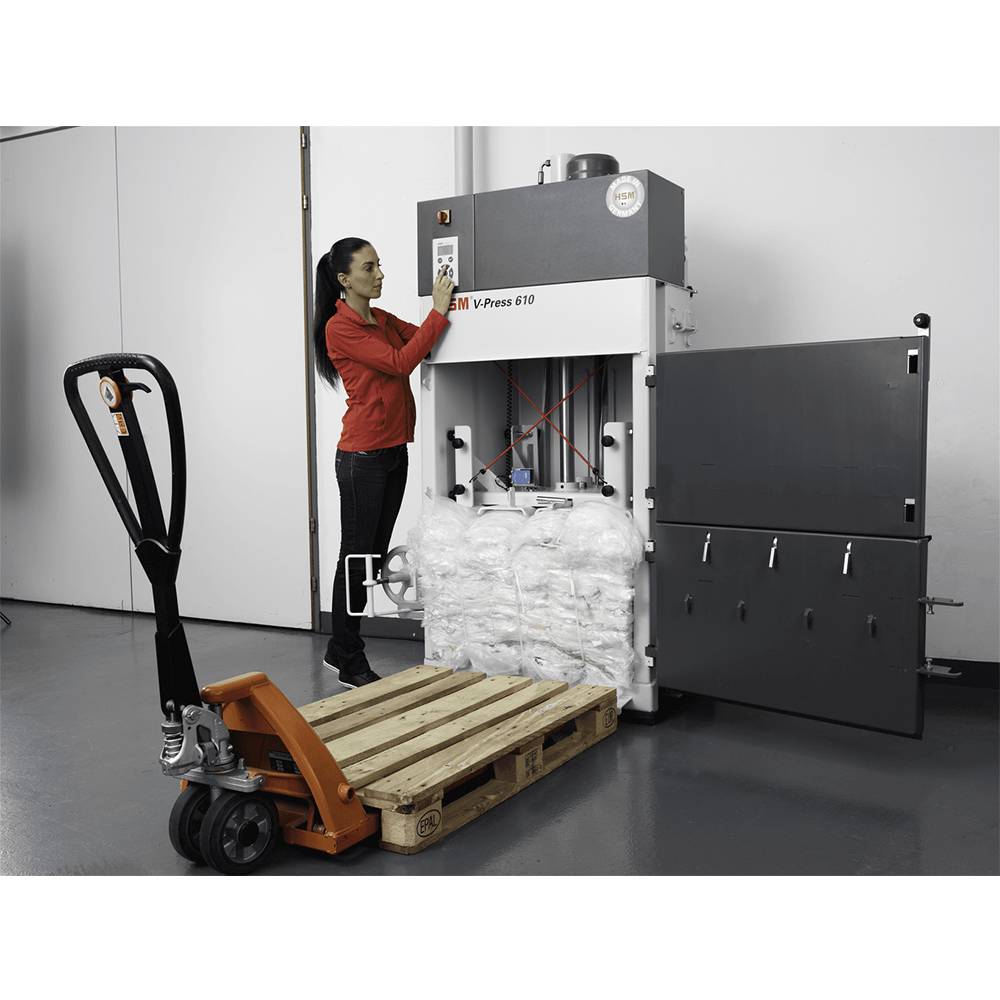

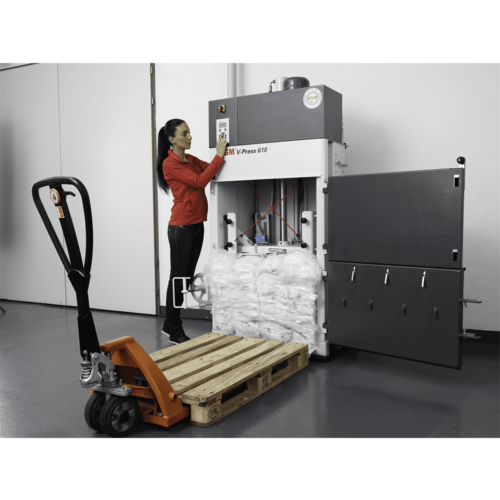

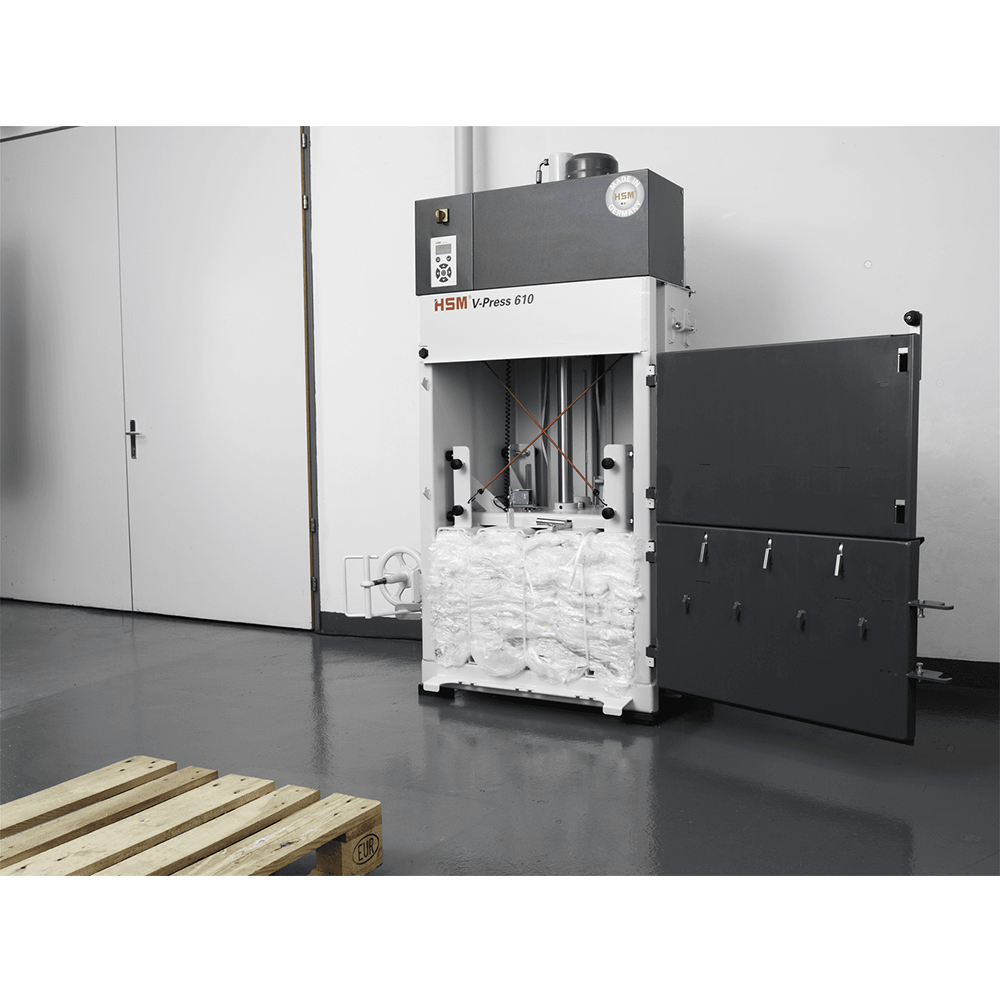

เครื่องอัดเศษวัสดุแนวตั้งแบบประตูบานพับ พร้อมที่ล็อคประตูแบบมือหมุน HSM รุ่น V-Press 610 eco
The HSM V-Press 605 and HSM V-Press 610 reduce the volume of cardboard or foils in an economical way.
Article Number: 000000000006110154
Pressing power: 120 kN
Loading aperture width: 800 mm
Loading aperture height: 495 mm
Bale length: 800 mm
Bale width: 600 mm
Bale height (up to): 600 mm
Bale weight, depending on material (up to): 100 kg
Cycle time when idling vacío: 22 s
Driving power: 3 kW
Voltage: 400 V
Frequency: 50 Hz
Width x Height x Depth: 1190 x 1980 x 815 mm
Weight: 539 kg
Industry type: Industry and Manufacturing, Print and Packaging, Logistics and Distribution, Retail
Press material: Plastic film, Punch waste/residue, Mixed paper, Cardboard
