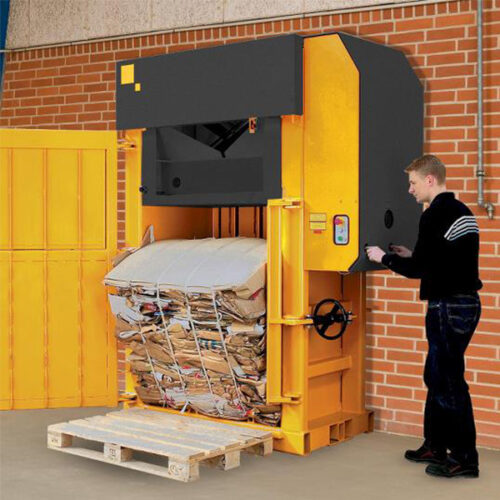

เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น X50
- stop Efficient compaction of most types of materials
- stop High compression ratio – also of expandable materials
- stop Minimum material expansion between press cycles
- stop Flexible tying options with plastic straps or steel wire
- stop Short press cycle (28 secs)
- stop Easy access to electrical parts for repair and maintenance
- stop Moving parts are protected inside the machine
Bale weight cardboard (kg): 350-450
Bale weight plastic foil (kg): 400-500
Bale size WxDxH (mm): 1200 x 800 x 1100
Press force (t): 50
Power supply: 3x400V 50Hz 32A
Motor (kW): 5.5
Noise Level (dB): 71
Cycle time avg. (sec): 28
Dimensions WxDxH (mm): 1965 x 1385 x 2580
Machine weight (kg): 2590
Feed opening WxH (mm): 1090 x 610
สินค้าที่เกี่ยวข้อง
-
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น B4
The Bramidan B4 baler is a machine which has been constructed to service users with smaller amounts of waste, but who still need a machine to handle bulky materials.
The chamber is equipped with rows of efficient barbs, which keep the material back and ensure optimum filling.
Bale weight cardboard (kg): 40-60
Bale weight plastic foil (kg): 50-70
Bale size WxDxH (mm): 770 x 500 x 600
Press force (t): 4
Power supply: 1x230V 50Hz 10A
Motor (kW): 1.5
Noise Level (dB): 57-60
Cycle time avg. (sec): 28
Dimensions WxDxH (mm): 975 x 715 x 1985
Machine weight (kg): 300
Feed opening WxH (mm): 770 x 460อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวตั้งแบบประตูสไลด์ พร้อมที่ล็อคประตูแบบมือหมุน HSM รุ่น V-Press 860 plus
With a pressing power of 548 kN and employing low-noise and energy-saving technology, the HSM V-Press 860 is the most economical and ecological solution for your waste disposal.
Article Number: 000000000006148274
Pressing power: 548 kN
Loading aperture width: 1195 mm
Loading aperture height: 650 mm
Bale length: 1200 mm
Bale width: 780 mm
Bale height (up to): 1200 mm
Bale weight, depending on material (up to): 480 kg
Cycle time when idling vacío: 25 s
Driving power: 4 kW
Voltage: 400 V
Frequency: 50 Hz
Width x Height x Depth: 1797 x 2985 x 1247 mm
Weight: 2008 kg
Industry type: Industry and Manufacturing, Recycling & Disposal, Logistics and Distribution, Retail, Print and Packaging
Press material: Plastic film, Punch waste/residue, Clothing, Polystyrene, Big Bags, Mixed paper, Cardboardอ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุพร้อมแยกของเหลว HSM รุ่น FluidEx 600
The HSM PET FluidEx 600 empties quickly and reliably those full PET bottles, carton based packaging containers and cans which have been filled or labelled incorrectly or where the sell-by date has been exceeded. The containers thrown in via the loading funnel are pulled in by the 4-roller mechanism and almost completely emptied. Small pieces of plastic and labels are removed from the liquid using a filter system and the liquid is then discharged using a dedicated system. The hinged loading funnel means that the machine can be easily cleaned. A high performance, low space requirement and the possibility to integrate the machine into existing recycling processes are the decisive advantages of the HSM PET FluidEx 600.
- Perforation of full PET bottles, carton based packaging containers and cans
- Containers emptied by up to 98 %
- Optimum removal of any remaining liquids using the 4 shaft technology
- Low space requirement
- Both manual and automatic filling possible
- Cutting unit made of specially hardened and ground steel
- Durable and robust – for a long life-cycle
- Intake shafts ensure that the PET bottles are fed reliably into the cutting unit
- Specific discharge system for liquids via hose or pump
- Easy to clean due to inspection flap
- Ideal as compliment to the HSM Baling presses
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวตั้งแบบประตูบานพับ พร้อมที่ล็อคประตูแบบมือหมุน HSM รุ่น V-Press 860 eco
With a pressing power of 548 kN and employing low-noise and energy-saving technology, the HSM V-Press 860 is the most economical and ecological solution for your waste disposal.
Article Number: 000000000006148174
Pressing power: 548 kN
Loading aperture width: 1195 mm
Loading aperture height: 650 mm
Bale length: 1200 mm
Bale width: 780 mm
Bale height (up to): 1200 mm
Bale weight, depending on material (up to): 480 kg
Cycle time when idling vacío: 25 s
Driving power: 4 kW
Voltage: 400 V
Frequency: 50 Hz
Width x Height x Depth: 1797 x 2985 x 1070 mm
Weight: 1886 kg
Industry type: Industry and Manufacturing, Print and Packaging, Recycling & Disposal, Logistics and Distribution, Retail
Press material: Plastic film, Punch waste/residue, Clothing, Polystyrene, Big Bags, Mixed paper, Cardboardอ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น X10
- Compact and strong
- stop Internal cross cylinders for a very low overall height (1900 mm)
- stop Short cycle time for fast clean up
- stop Press force of 10 tons – a hardworking baler with high capacity
- stop Small base area (<1.5 m2)
- stop Steady compaction – keeps bales under pressure while tying
- stop Available with both single and three phase connection
- stop The lower door is safely opened with a threaded spindle
Bale weight cardboard (kg): 70-90
Bale weight plastic foil (kg): 80-110
Bale size WxDxH (mm): 800 x 600 x 600
Press force (t): 10
Power supply: 3x400V 50Hz 16A
Motor (kW): 4.0
Noise Level (dB): 59-60
Cycle time avg. (sec): 18
Dimensions WxDxH (mm): 1315 x 1040 x 1900
Machine weight (kg): 665
Feed opening WxH (mm): 800 x 610อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวนอน HSM รุ่น 8TE
In terms of performance, efficiency and flexibility our mobile HSM 8 TE small baler is hard to beat. This compact baling press is also extremely easy to operate: insert the strapping tape, switch it on and watch it go! Also the strapping and ejection of the bales can be performed easily. The complete bale ejection means that the compact bales are ejected by the machine directly onto a pallet and ca storage locationan be easily transported to .
- Pressing Power: 80 kN
- Auto Strapping: No
- Pressing Chamber Width: 1,050 mm
- Pressing Chamber Height: 505 mm
- Bale Size in mm: 645 W x 50,000 L x 505 H
- Hourly Bale Output: 4-7
- Driving Power: 400 V / 50 Hz (4 kW)
- Dimensions in mm: 2,520 W x 8,500 x 780 H
- Weight: 554 kg
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น X50 Galvanized
- stop DS/EN 1461:2009 galvanized
- stop For all types of recyclables
- stop Suited for PET bottles, aluminium and food cans, and plastic jugs
- stop Combination of baling and draining of residual liquids available
Bale weight cardboard (kg): 350-450
Bale weight plastic foil (kg): 450-550
Bale size WxDxH (mm): 1200 x 800 x 1100
Press force (t): 50
Power supply: 3x400V 50Hz 32A
Motor (kW): 5.5
Noise Level (dB): 71
Cycle time avg. (sec): 28
Dimensions WxDxH (mm): 1965 x 1385 x 2580
Machine weight (kg): 2590
Feed opening WxH (mm): 1090 x 610อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวนอนแบบต่อเนื่องอัตโนมัติ HSM รุ่น VK 2310
- Pressing power: 240 kN
- Volume throughput at 20 kg/m³: 1.47 t
- Volume throughput at 50 kg/m³: 3.67 t
- Bale weight, depending on material (up to): 140-250 kg
- Driving power: 9.2 kW
- Voltage: 400 V
- Frequency: 50 Hz
- Dimensions in mm: W 2,600 x H 2,050 x L 6,060
- Weight: 4,000 kg
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
สินค้าหมดแล้วอ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวตั้งแบบประตูสไลด์ พร้อมที่ล็อคประตูแบบมือหมุน HSM รุ่น V-Press 820 plus
Thanks to its powerful motor, its ergonomic design and its sophisticated and innovative technology, the
HSM V-Press 820 combines all of the advantages of a baling press into one machine.Article Number: 000000000006143284
Pressing power: 178 kN
Loading aperture width: 1195 mm
Loading aperture height: 558 mm
Bale length: 1200 mm
Bale width: 780 mm
Bale height (up to): 1000 mm
Bale weight, depending on material (up to): ca. 250 kg
Cycle time when idling vacío: 23 s
Driving power: 4 kW
Voltage: 400 V
Frequency: 50 Hz
Width x Height x Depth: 1700 x 2470 x 1075 mm
Weight: 1300 kg
Industry type: Industry and Manufacturing
Press material: Plastic film, Punch waste/residue, Mixed paper, Cardboardอ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View -
อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น X30
- Compacts very bulky material
- stop For most materials
- stop Retainers prevent compacted material from raising in the chamber
- stop Optimal compaction no matter the material
Bale weight cardboard (kg): 280-350
Bale weight plastic foil (kg): 350-450
Bale size WxDxH (mm): 1200 x 800 x 1000
Press force (t): 30
Power supply: 3x400V 50Hz 16A
Motor (kW): 4.0
Noise Level (dB): 59-60
Cycle time avg. (sec): 25
Dimensions WxDxH (mm): 1745 x 1255 x 2295
Machine weight (kg): 1710
Feed opening WxH (mm): 1090 x 655อ่านเพิ่มเติมProduct added! Browse WishlistThe product is already in the wishlist! Browse WishlistQuick View
