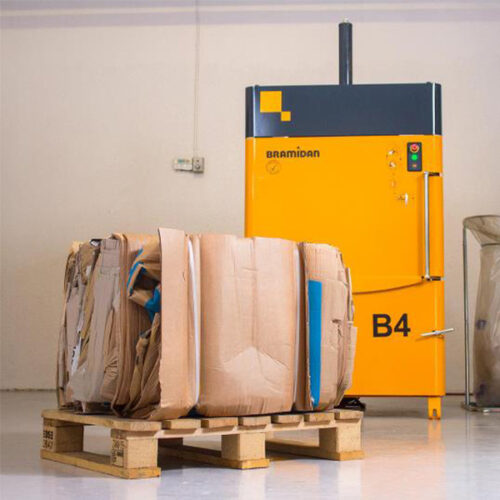

เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น B4

เครื่องอัดเศษวัสดุแนวตั้ง Bramidan รุ่น B4

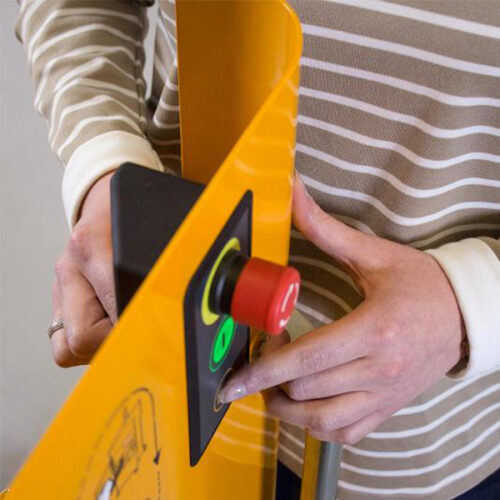

  • Simple control panel

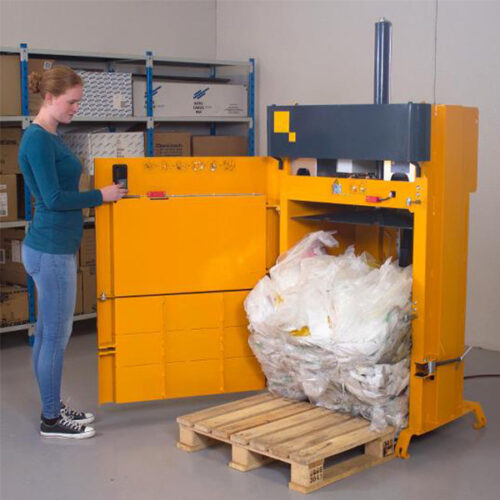

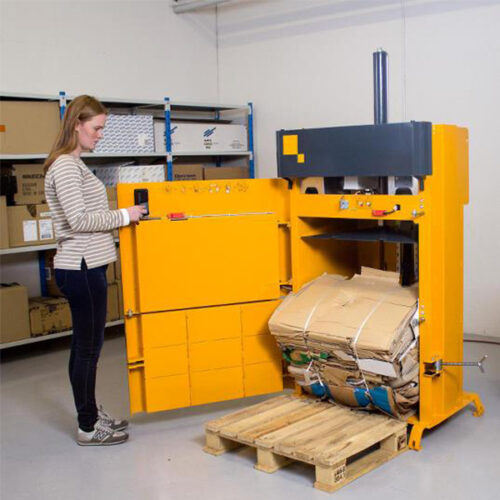

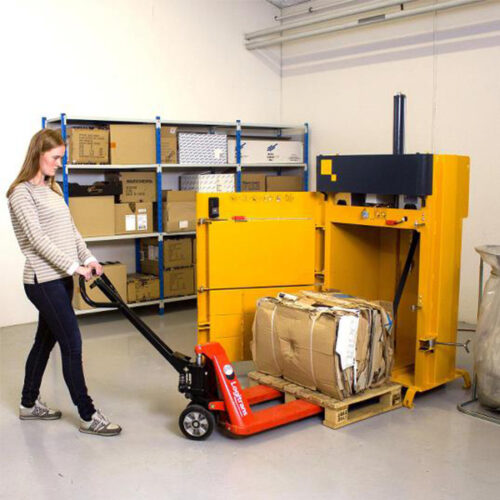

  • stop Automatic bale ejection
  • stop Automatic full baler indicator
  • stop Very low noise level (<60 dB)
  • stop Low overall width (940 mm) and height (<2 metres)
  • stop Compacted bales measure just 70 x 50 x 35-65 cm

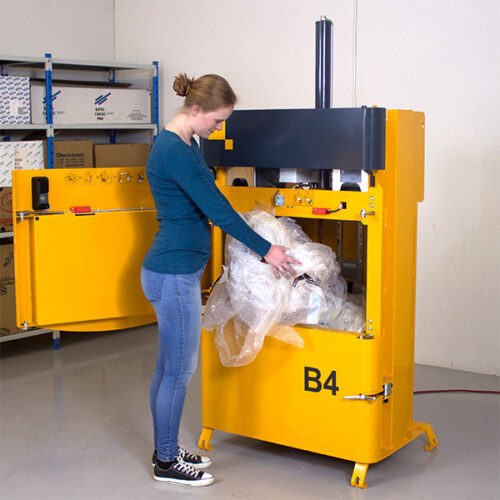

  • stop Front operated for installation in narrow spaces
  • stop Single phase power connection



Bale weight cardboard (kg): 40-60
Bale weight plastic foil (kg): 50-70
Bale size WxDxH (mm): 770 x 500 x 600
Press force (t): 4
Power supply: 1x230V 50Hz 10A
Motor (kW): 1.5
Noise Level (dB): 57-60
Cycle time avg. (sec): 28
Dimensions WxDxH (mm): 975 x 715 x 1985
Machine weight (kg): 300
Feed opening WxH (mm): 770 x 460
